10/4 SJEOOW Portable Cord Applications:
SJEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.
Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC
Standards:
UL Flexible Cord – UL Standard 62
CSA Flexible Cord – C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method
Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE
10/4 SJEOOW Portable Cord Specifications:
Size: 10 AWG
Number of Conductors: 4
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 16.00 mm / 0.630 inches
Weight: 0.27 lbs per ft
Current Amps: 25
Color Code:
4 Conductors: Black, White, Red, Green
10/4 SJEOOW Portable Cord More Information
| Wire Size | 10 AWG |
| # of Conductors | 4 Conductors |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.63 |
| Ampacity | 25 |
| Voltage | 300V |
| Temp. Rating | -50°C ~ 105°C |
| Insulation Material | TPE – Thermoplastic Elastomer |
| Jacket Material | TPE – Thermoplastic Elastomer |
| Jacket Color | Black |
| Flexibility | High Flexibility |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Standards | UL Listed, CSA Certified, MSHA Approved |
| Features | Weather Resistant, Water Resistant, Oil Resistant |

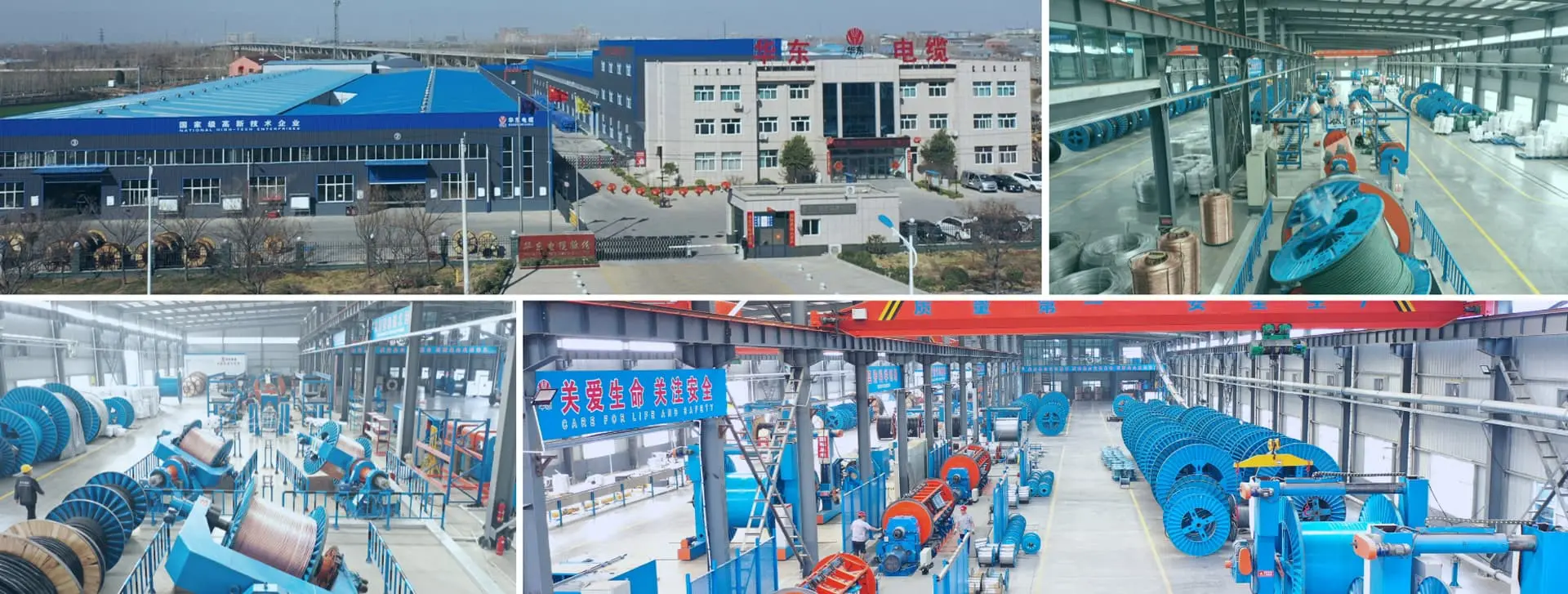

Zhengzhou Huadong Cable Co., Ltd is an import and export trade company in Zhengzhou City, Henan province, China. Our factory occupied 50000 square meters, and specializes in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, UL Wire, mining cables, High-Temperature Wire. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED, and JIS standards. What’s more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you a quotation as soon as possible.
For the best cable price， please feel free to leave your requirement, We will reply to you in 12 hours.
