Color:
Yellow
Applications:
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.
Features:
Oil and chemical resistant. UV resistant. High flexibility. Small bending radius. UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C
Standards:
UL VW-1, CSA FT4
UL/CSA Certified
Jacket Material:
PVC – Polyvinyl Chrloride
Conductor Material:
Bare Copper

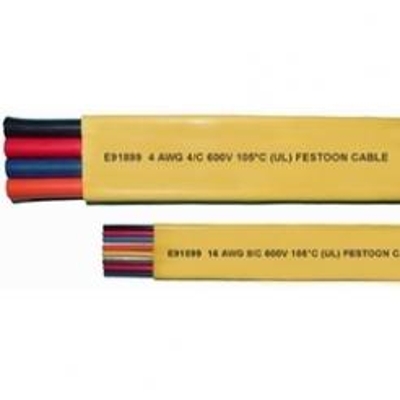

4/4 Yellow Flat Festoon Cable Specifications:
Size:4 AWG
Number of Conductors:4
Conductor Strand:413
Insulation Thickness: 0.045 inches
Outside Diameter: 0.515 x 1.750
Weight: 0.896 lbs per ft
Voltage: 600V
4/4 Yellow Flat Festoon Cable More Information
| Cable Type | Flat Festoon Cable |
| Wire Size | 4 AWG |
| # of Conductors | 4 Conductors |
| Conductor Material | Bare Copper |
| O.D. (Inches) | 0.515 x 1.750 in. |
| Jacket Color | Yellow |
